Cupola Melting Furnace From Henan Recycle

Large Image : Cupola Melting Furnace From Henan Recycle

Product Details:

Place of Origin:	Henan, China
Brand Name:	Recycle

Payment & Shipping Terms:

Price:	$50,000.00 - $120,000.00/sets
Packaging Details:	Standard Packing or as Customer's Requirement <br>cupola melting furnace
Supply Ability:	10 Set/Sets per Month cupola melting furnace

Contact Now

Cupola Melting Furnace From Henan Recycle

Description

Type:	Blast Furnace	Use:	Melting Furnace
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Voltage:	380V	Dimension(LWH):	As The Capacity
Weight (T):	40 T	Power (kW):	15.5
Warranty:	12 Months	Key Selling Points:	Competitive Price
Application:	Car Battery Recycling Plant	Product Name:	Cupola Melting Furnace
Melting Material:	Lead Paste	Name:	Cupola Melting Furnace
Capacity:	20-100ton	Duty Cycle:	24H Continuous Work
Color:	Gray	Output Lead Shape:	Lead Ingot Of Cupola Melting Furnace
Feature:	Environmentally Friendly	Function:	Car Battery Smelting Furnace
Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Machinery Repair Shops
Showroom Location:	Russia, Spain, Thailand, Colombia, Kazakhstan, Japan	Marketing Type:	New Product 2023
Port:	Qingdao Port Or Specified Port

Lead Acid Battery Recycling Melting Cupola Furnace

Background

There are different alternatives to the final disposition of batteries: landfill, incineration and recycling. The number of processes for waste lead acid battery recycling have increased over the last few years, mainly because of the environmental impact caused by their disposal.
Therefore, the reearch of battery recycling and reuse is becoming more and more necessary. As for this international situation, we designed the china supply lead plate grid battery scrap recycling cupola furnace for lead battery separating and recycling.

Raw Materials

Raw materials are the lead separated by the battery separation section

(automotive battery, truck battery, electric bicycle battery, etc.)

Final Products

Product Introduction

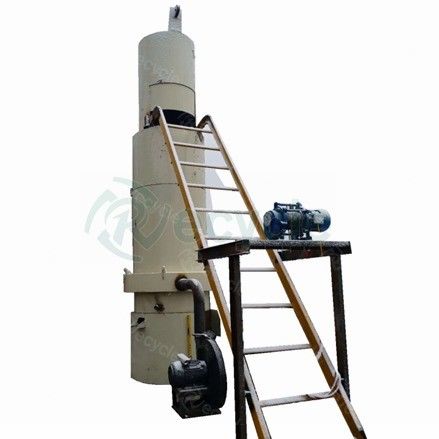

Lead Acid Battery Melting Cupola Furnace is a melting device used in foundries that can be used to melt cast iron, copper, lead etc. The cupola can be made almost any practical size. The overall shape is cylindrical and the equipment is arranged vertically, usually supported by four legs.
The overall of Lead Acid Battery Melting Cupola Furnace look is similar to a large smokestack. The bottom of the cylinder is fitted with doors which swing down and out to "drop bottom" . The top where gases escape can be open or fitted with a cap to prevent rain from entering the cupola. To control emissions a cupola may be fitted with a cap that is designed to pull the gases into a device to cool the gases and remove particulate matter.

Structure

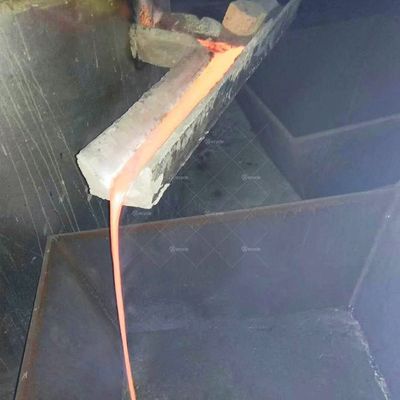

1. Raw materials are melting in Lead Acid Battery Melting Cupola Furnace with water cooling system.

Lava flows out from the side hole at lower part of cupola furnace, and there will be lead slag out from another exit and be collected by the mould.

2. The final product is the lead ingot, the lead slag can be sold directly.

3. There is the environmental protection system installed combined with the cupola furnace, which can keep there is an efficient pollution control system in steady. The composition of waste gas contains: CO2, CO, SO2 and dust.

Environmental Protection System

Our research and development of products are carried out on the premise of environmental protection. As lead blocks are smelted to produce harmful gases such as carbon dioxide, carbon monoxide and sulfur dioxide, we are equipped with a flue gas collection system and a harmful gas purification system.

It is an environmentally friendly product that can become rich.

Product Advantages

1. Lead Acid Battery Melting Cupola Furnace can run as your needs, 24 hours running is no problem, Higher output performance than traditional lead melting furnace;

2. Feeding automatically, lower manpower cost, output continuously; The lead liquid output continuously which is different from the output by batch;

3. Better safety control system; The system will cut of the power automatically in case of some emergency;

4. Environmental protection system - the whole line is configured with the air pollution control system.

Technical Parameters

Model	Capacity (24 Hours)
RQ-20	20 Ton
RQ-40	40-50 Ton
RQ-60	60-70 Ton
RQ-80	80-90 Ton
RQ-100	100-120 Ton
Working Performance
Raw Material	Lead Plate Separated From Lead Acid Battery
Final Product	Lead Ingot

NOTE:

Working voltage: 380±10V(415V ,440V also can be customized);

(If you want more detailed parameters and quotations, please feel free to send an inquiry)

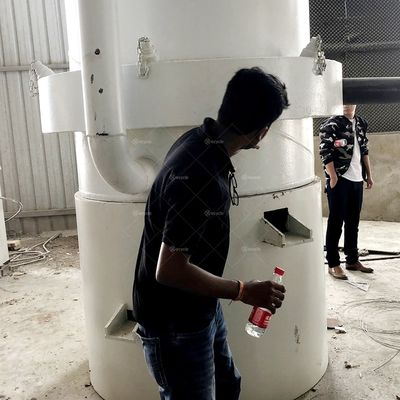

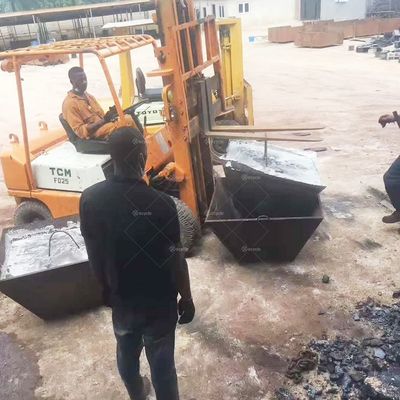

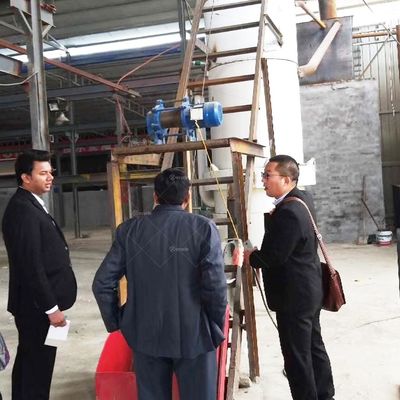

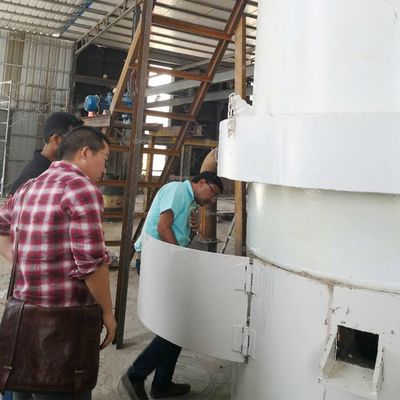

Customer Site

80 Tons Per Day Customer Working Site In African

70 Tons Daily Customer Worksite, Automatic Lead Output

50 T/D Working Site, Automatic Circulation, Air Pollution Treatment System

70 Tons Daily Customer Site, Welcome To Visit

60 Tons Per Day, You Can Visit Customer Sites In China

Company Show

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.

FAQ

Q: What type of Lining for Furnaces?

A: High manganese furnace plate, The minimum capacity is 20 ton/d.

Q: Which Raw Materials Are Suitable For Melting Furnace?

A: For scrap battery lead recycling, can not used to melt the lead ore.

Q: How Many Reducing Lead Ingot Can Be Produced By Investing A Ton of Raw Materials(Car Battery)?

A: One ton Car Battery can produce about 600 kg Reducing lead ingot.

Q: What About The Machine Installation?

A: We will send engineers to customer working site for the installation guidance,commissioning and training when everything is ready on the working site, like power, cable, labors, forklift, etc.
