ABS Plastic Recycling Shredder for Waste Books and Industrial Cardboard Single Shaft

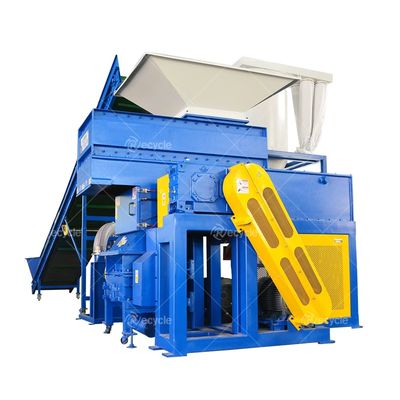

Large Image : ABS Plastic Recycling Shredder for Waste Books and Industrial Cardboard Single Shaft

Product Details:

Place of Origin:	Henan, China
Brand Name:	Henan Recycle

Payment & Shipping Terms:

Price:	$12,500.00/sets >=1 sets

Contact Now

ABS Plastic Recycling Shredder for Waste Books and Industrial Cardboard Single Shaft

Description

Condition:	New	Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS
Machine Type:	Single Shaft Shredder	Max.Production Capacity (kg/h):	3000
Production Capacity (kg/h):	500 - 3000 Kg/h	Use:	Metal Shredding
Voltage:	380V/50Hz/3Phase	Dimension(LWH):	178014001800
Power (kW):	2.2	Weight (T):	2.8
Warranty:	1 Year	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction Works , Energy & Mining, Advertising Company, Other
Key Selling Points:	Multifunctional	Showroom Location:	Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Romania, South Africa, Kazakhstan, Ukraine,
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Engine
Keyword:	Bottle Cutting Plastic Crushing Machine Price	Name:	Single Shaft Crusher Scrap Recycling Shredder
Application:	Shredding Material	Blades Material:	Cr12MoV/SKDII
Function:	Multifunctional Waste Material Shredder	Advantage:	Environment-friendly
Shaft:	One	Feature:	High Efficiency
Type:	Automatic	Color:	Client's Requirements

Plastic Recycling Shredder Machine Shredding Waste Books Shredder Industrial Cardboard Paper Single Shaft

Technical Parameter

Model	RSK-S500	RSK-S1000	RSK-S1500	RSK-S2000	RSK-S2500
Capacity (kg/h)	500-1000	1000-1500	1500-2000	2000-2500	2500-3000
Rotor-knives (pcs)	26+4	46+6	49+4	64+4	90+4
Counter-knives(pcs)	4	4	4	4	6
Blade Material	Cr12MoV/SKDII	Cr12MoV/SKDII	Cr12MoV/ SKDII	Cr12MoV/ SKDII	Cr12MoV/ SKDII
Rotor Diameter(mm)	240	400	400	500	500
Rotor Speed(r/min)	45-90	45-90	45-90	55-75	55-75
Cutting Chamber(mm)	600*600	810*800	1000*1000	1200*1100	1500*1200
Hydraulic Power(kw)	2.2	3	4	5.5	7.5
Cylinder Stroke(mm)	600	800	1000	1000	1200
Machine Size (mm)	178014001800	240016802000	300020002200	35002300 2200	36003000 2400
Weight(kg)	2800	4000	5500	7000	9000

NOTE:

The above shredder is our standard configuration. For different raw materials to be shredded, the

configuration might be different. Please feel free to contact us for detailed information or special request;

Suitable Raw Materials

It is mainly used for shredding and recycling various thick-wall waste materials and leftover materials in the plastic industry. It can effectively shred and crush large materials ( such as extra-thick head materials, nozzle materials, gate materials, large plastic pipe fttings, large-diameter thick-wall PE pipes, PE head materials, plastic packaging barrels, large bundles of plastic films, large bundles of woven bags, rolled films, paper, fibers, plastic boxes, plastic garbage cans, TV casings, computer shells, printer housings,copper wires, forklift pallets, plastic clamping plates, plastic turnover boxes, etc. ) and is suitable for crushing and recycling various materials of plastic, rubber and wood. Shredded particles can be small to 20mm according to different needs.

Advantages

1. The main shaft is driven by gear reducer, running smoothly, with low noise and large torque

2. The material of the knife: Cr12MoV (Japanese brand SKD-11, American brand D2); the moving knife uses the "V" or "one" word installation way to make the knife cut evenly, reduce energy consumption and reduce noise in the whole work; each knife has 4 cutting edges, and then rotates 90 degrees after wear; each set has 2 cutting edges. After wearing, it can be rotated for 180 degrees to continue to use; the blade on the rotor can be disassembled for easy cleaning, maintenance.

3. We can supply different rollers according to different materials. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller.

4. We have designed three different knives holders according to the materials, such as welded knife holders, assembled knife holders and CNC cutting knife holders.

Main Structures

1. Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet,control panel, screen, roller, knives holder, ect.

2. After shredding, the dimension of most large plastic or other material will reduce 30%, some material dimension after shredding can up to 50%. (We have arranged many videos. Please contact us freely if you need.)

Single shaft shredder consists of a

knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block.

The blade can be used in four directions. Blade quality have 9CrSi, C12MoV, SKD-II, D2 etc. Can be customized

The screen can be changed quickly,

the aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials.

Hydraulic-driven pusher:

The hydraulic driven pusher is equipped with an adjustable guide block and adopts advanced sealing design. Ash chute - remove the dust from the pusher in the shredding process so as to protect the hydraulic system.

Double speed hydraulic system: Push the material box high speed back, maximize the output. The built-in oil/air cooling device is able to meet the needs of continuous production.

PLC Intelligent control system : When the equipment is overloaded, the knife roller will turn and reverse automatically, and the equipment will stop working automatically when there is no feeding materials.

Customer Visiting

Quality Assurance

Company Show

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
