Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution

I'm Online Chat Now

Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution

Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution

Large Image :  Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution

Product Details:
Place of Origin: Henan, China
Brand Name: Recycle
Payment & Shipping Terms:
Price: $8,000.00/sets >=1 sets

Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution

Description
Condition: New Plastic Type: PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS
Machine Type: Double Shaft Shredder Max.Production Capacity (kg/h): 60T/H
Production Capacity (kg/h): 2000 - 60000 Kg/h Use: Metal Shredding
Voltage: 220V 380V 400V, 380V/50Hz/3 Phase Or Customized Dimension(L*W*H): 2600x900x1800mm
Power (kW): 22 Weight (T): 3000
Warranty: 1 Year Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction Works , Energy & Mining, Other, Advertising Company
Key Selling Points: Multifunctional Showroom Location: Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Romania, South Africa, Kazakhstan, Ukraine,
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Engine
Blades Material: 9CrSi/D2/SKD-11/DC53 Keyword: High-Efficiency Double Shaft Shredder Machine For Plastic And Metal
Shaft: TWO Feature: High Efficiency
Advantage: Environment-friendly Function: Multifunctional Waste Material Shredder
Name: Professional Double Shaft Shredder Color: Client's Requirements
Application: Shredding Material Type: Automatic


Customer Site
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 0
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 1
High-Efficiency Double Shaft Shredder Machine for Plastic and Metal Professional Double Shaft Shredder
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 2
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 3


Double Shaft Shredder Machine
1. Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.

2. Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.

3. Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.

4. Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.

5. Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.

6. Waste Household Appliances: TV, washing machine, refrigerator shell etc.

7. Pipes: large pipes, pipe fittings, PE pipes etc.

8. Scrap tires: car tires, truck tires etc.

9. All kinds of Kitchen waste, domestic waste, rdf derivatives, medical waste,garden waste etc.
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 4
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 5
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 6

Technical Parameters
Model
RSK-D600
RSK-D1000
RSK-D1200
RSK-D1500
RSK-D1900
RSK-D2600
Motor Power
11*2 Kw
30*2 Kw
45*2 Kw
55*2 Kw
90*2 Kw
160*2 Kw
Capacity
2-6 T/H
3-8 T/H
5-10 T/H
8-18 T/H
10-25 T/H
25-60 T/H
Blade Number
34 Pieces
34 Pieces
30 Pieces
38 Pieces
34 Pieces
25 Pieces
Input Opening Size(mm)
950*700
1200*1000
1500*1200
2000*1500
2500*2000
3000*2500
Dimension L/W/H(m)
2.6*0.9*1.8
3.6*1.5*2.2
4.6*1.8*2.6
5.2*2.0*2.6
6.2*2.5*2.8
8.2*4.0*4.3
Weight
3T
5 T
8 T
13 T
18 T
36 T
NOTE:

The above shredder is our standard configuration. For different raw materials to be shredded, the

configuration might be different. Please feel free to contact us for detailed information or special request;


Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 7

Working Principle

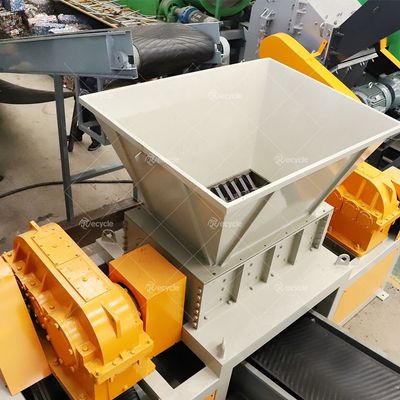

1. Feed Hopper: Put the material to be crushed, so as to prevent the material from splashing out;

2. Double Shaft Cutting System: Using different blades according customers' material;

3. Power System: We choose famous brands of motor in China, can also be configured according to customer needs;

4. Discharging Conveyor System: It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 8


Machine Features

Waste Double Shaft Shredder Shredding Machine is mainly composed of feed hopper, double shaft cutting system, PLC control system, discharging conveyor system and power system, etc;
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 9

Blade materials include 9CrSi, Cr12MoV, SKD-II, D2, DC53, etc. It also can be customized.

Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 10

Steel plate of crushing chamber is very thick, so very strong and durable, long service life.
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 11

We design shredder blades with different thickness for processing different raw materials.
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 12

The bearing pedestal adopts the split type, easy to maintain and replace the blade.
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 13

Delivery
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 14
Multifunctional Double Shaft Shredder for Plastic and Metal The Perfect Shredding Solution 15
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
