Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling

I'm Online Chat Now

Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling

Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling

Large Image :  Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling

Product Details:
Place of Origin: Henan, China
Brand Name: Recycle
Certification: CE Certificate
Model Number: RSKZT-3
Payment & Shipping Terms:
Price: $5,500.00/sets >=1 sets

Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling

Description
Condition: New Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Motor Recycle Factory
Showroom Location: Canada, Turkey, United States, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, UAE, Colombia, Romania, Kazakhstan, Ukraine, Uzbekistan, Japan, Malaysia, Australia Type: Scrap Motor Recycling Machine
Warranty: 1 Year Power: 4KW
Material: Standard Production Capacity: 5-10pcs/min
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Hot Product Warranty Of Core Components: 1 Year
Core Components: Motor, Engine Weight (KG): 545 Kg
Function: Dismantling Scrap Motor Stator Name: Low Investment Scrap Electric Motor Splitting Machine
Raw Material: Scrap Motor Advantage: Easy Opperation
Keywords: Good Motor Stator Pulling Machine Feature: 99 % High Purity
Color: Blue, Green Or Customized Application: Motor Recycling
Size: 2.2*0.9*1.1 M

Low Investment Scrap Electric Motor Splitting Machine Good Motor Stator Pulling Machine
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 0


Product Description

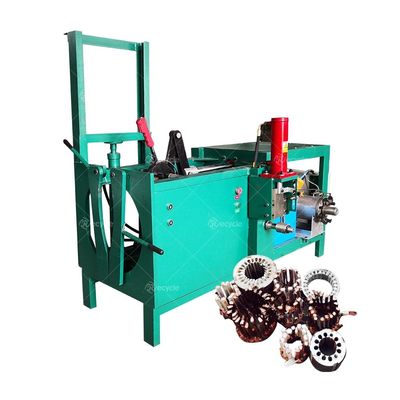

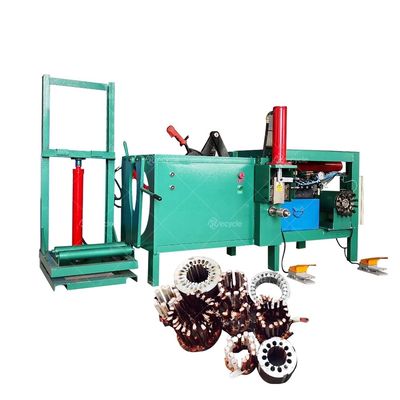

1. Scrap Motor Stator Copper Extractor Dismantling Machine is a copper recovery equipment designed for motor stator.

2. This equipment can easily obtain clean copper wire through two steps of copper cutting and copper pulling.

3. This equipment can handle large and small size stators at the same time, with simple operation and maintenance.
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 1
Model
RSK-ZTJ4
Power
4 Kw
Weight
545Kg
Overall Dimensions
2.2*0.9*1.1 m
Process range: Stator diameter less than 450mm

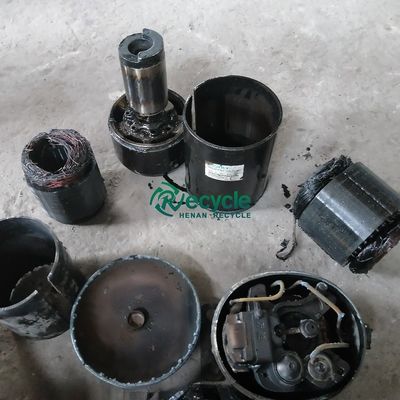

Raw Material and Final Products

Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 2
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 3
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 4

Machine Features

Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 5





Simple Operation
Copper cutting and copper taking are controlled by pedals, which is fast and convenient. There is a safety protection device on the foot pedal.




Hydraulic System
The hydraulic system is a well-known brand in China. All functions are powered by the hydraulic system, which is safe and reliable.
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 6
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 7




Lifting Platform
Humanized design saves manpower for handling large stators. This function is controlled by buttons and powered by hydraulic system.





Spot Supply
Factory stock, support power and voltage customization, more related motor processing equipment, please contact us directly
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 8


Treatment Process of Small Size Stators

1. Firstly , put the stator in the cutter part, firstly cut the copper roll which ledge part . Then you get the head and main body.

2. The head part will use the claw type holder to get the copper.
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 9


Treatment Process of Large Size Stators

1. Firstly , put the stator in the cutter part, firstly cut the copper roll which ledge part . Then you get the head and main body.

2. The main body will be separated with the pinchers type holder
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 10

Detailed Images
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 11
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 12

Customers Feedback
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 13
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 14

Related Products
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 15
Low Investment Scrap Electric Motor Splitting Machine with Good Motor Stator Pulling 16

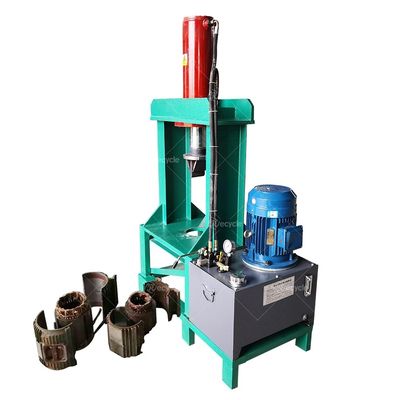

Scrap Motor Shell Press Machine: it can help you to remove the shell easily
Scrap Motor Stator Cutter: it can help you to cut motor stator efficiently
Quality Assurance
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
