Product Details:
|
| Condition: | New | Type: | Blast Furnace |
|---|---|---|---|
| Use: | Scrap Battery Lead Melting Furnace | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Motor, Gear, Design |
| Voltage: | As Requirements | Dimension(L*W*H): | 1.3 - 2 M |
| Weight (T): | 20 T | Power (kW): | 25 |
| Warranty: | 2 Years | Key Selling Points: | Sustainable |
| Applicable Industries: | Building Material Shops, Energy & Mining, Solid Waste Recycle | Showroom Location: | Egypt, Viet Nam, Indonesia, Pakistan, India, South Korea, UAE, South Africa |
| Product Name: | Made In China Lead Battery Cupola Furnace Blast Furnace | Keyword: | Lead Melting Cupola Furnace |
| Capacity: | 24 Hours | Raw Material: | Lead Battery |
| Weight: | 13-30 Ton | Color: | As Requirements |
| Application: | Lead Acid Battery Recycle | Final Product: | Lead Ingot |
| Function: | Lead Smelting | Working Temperature: | 1500 |
| Port: | Qingdao Port, Shanghai Port, Or Any Other Main Port In China |
There are different alternatives to the final disposition of batteries: landfill, incineration and recycling. The number of processes for waste lead acid battery recycling have increased over the last few years, mainly because of the environmental impact caused by their disposal.
Therefore, the reearch of battery recycling and reuse is becoming more and more necessary. As for this international situation, we designed the china supply lead plate grid battery scrap recycling cupola furnace for lead battery separating and recycling.
Raw materials are the lead separated by the battery separation section
(automotive battery, truck battery, electric bicycle battery, etc.)

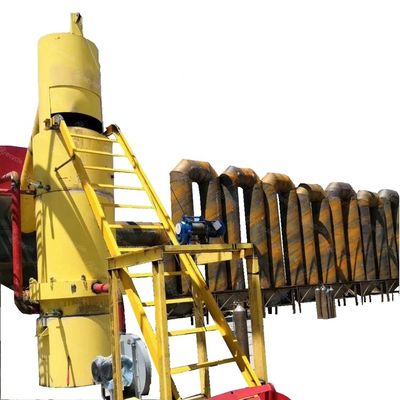

Acid Battery Lead Melting Plant Battery Recycling System is a melting device used in foundries that can be used to meltcast iron, copper, lead etc. The cupola can be made almost any practical size. The overall shape is cylindrical and the equipment is arranged vertically, usually supported by four legs.
The overall of Acid Battery Lead Melting Plant Battery Recycling System look is similar to a large smokestack. The bottom of the cylinder is fitted with doors which swing down and out to "drop bottom" . The top where gases escape can be open or fitted with a cap to prevent rain from entering the cupola. To control emissions a cupola may be fitted with a cap that is designed to pull the gases into a device to cool the gases and remove particulate matter.

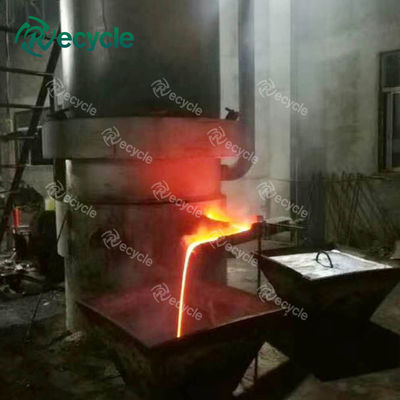

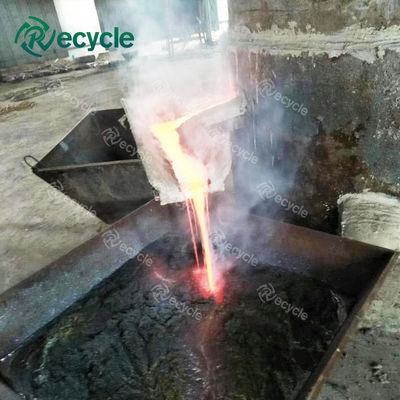

Raw materials are melting in Acid Battery Lead Melting Plant Battery Recycling System with water cooling system. Lavaflows out from the side hole at lower part of cupola furnace, and there is also the lead slag will output from another exit and be collected by the mould. The final product is the lead ingot, the lead slag can be sold directly.
There is the environmental protection system installed combined with the cupola furnace, which can keep there is an effecient pollution control system in steady. The composition of waste gas contains: CO2, CO, SO2 and dust.
Our research and development of products are carried out on the premise of environmental protection. As lead blocks are smelted to produce harmful gases such as carbon dioxide, carbon monoxide and sulfur dioxide, we are equipped with a flue gas collection system and a harmful gas purification system. It is an environmentally friendly product that can become rich.
1. Acid Battery Lead Melting Plant Battery Recycling System can running as your needs, 24 hours running is no problem, Higher output performance than traditional lead melting furnace;
2. Feeding automatically, lower manpower cost, output continuously; The lead liquid output continuously which is different from the output by batch;
3. Better safety control system; The system will cut of the power automatically in case of some emergency;
4. Environmental protection system - the whole line is configured with the air pollution control system.
RECYCLE support team has more than 20 professional engineers to provide clients professional solutions, facing multitudinous requirements, RECYCLE team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, RECYCLE keep growing and now owns ability of taking large wood to sawdust/powder plant, scrap tires to rubber granules/powder plant, waste metal downsize project,WEEE recycle plant in China or abroad, under the support of internal business department, RECYCLE is able to take"Turn-Key" projects in China or abroad.
