1500 Cupola Furnace The Ultimate Solution for Sustainable Lead Scrap Recycling

Large Image : 1500 Cupola Furnace The Ultimate Solution for Sustainable Lead Scrap Recycling

Product Details:

Place of Origin:	Henan, China
Brand Name:	Henan Recycle

Payment & Shipping Terms:

Price:	$41,000.00/sets >=1 sets

Contact Now

1500 Cupola Furnace The Ultimate Solution for Sustainable Lead Scrap Recycling

Description

Condition:	New	Type:	Lead Melting Furnace
Use:	Scrap Battery Lead Melting Furnace	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Engine, Motor, Gear, Design
Voltage:	As Requirements	Dimension(LWH):	1.4*6.2 M
Weight (T):	20 T	Power (kW):	25
Warranty:	1 Year	Key Selling Points:	Sustainable
Applicable Industries:	Building Material Shops, Energy & Mining, Other, Solid Waste Recycle	Showroom Location:	Egypt, Viet Nam, Indonesia, Pakistan, India, South Korea, UAE, South Africa
Product Name:	Cupola Furnace For Recycling Lead Scrap	Capacity:	20-100Ton/D
Raw Material:	Lead Battery	Color:	Required
Keyword:	Melting Furnace For Lead Ingots	Final Product:	Lead Ingot
Weight:	13-30 Ton	Function:	Lead Smelting
Working Temperature:	1500	Application:	Lead Acid Battery Recycle

Cupola Furnace For Recycling Lead Scrap

Background

There are different alternatives to the final disposition of batteries: landfill, incineration and recycling. The number of processes for waste lead acid battery recycling have increased over the last few years, mainly because of the environmental impact caused by their disposal.
Therefore, the reearch of battery recycling and reuse is becoming more and more necessary. As for this international situation, we designed the china supply lead plate grid battery scrap recycling cupola furnace for lead battery separating and recycling.

Raw Materials

Raw materials are the lead separated by the battery separation section

(automotive battery, truck battery, electric bicycle battery, etc.)

Final Products

Product Introduction

Lead Acid Battery Melting Cupola Furnace is a melting device used in foundries that can be used to melt cast iron, copper, lead etc. The cupola can be made almost any practical size. The overall shape is cylindrical and the equipment is arranged vertically, usually supported by four legs.
The overall of Lead Acid Battery Melting Cupola Furnace look is similar to a large smokestack. The bottom of the cylinder is fitted with doors which swing down and out to "drop bottom" . The top where gases escape can be open or fitted with a cap to prevent rain from entering the cupola. To control emissions a cupola may be fitted with a cap that is designed to pull the gases into a device to cool the gases and remove particulate matter.

Structure

1. Raw materials are melting in Lead Acid Battery Melting Cupola Furnace with water cooling system.

Lava flows out from the side hole at lower part of cupola furnace, and there will be lead slag out from another exit and be collected by the mould.

2. The final product is the lead ingot, the lead slag can be sold directly.

3. There is the environmental protection system installed combined with the cupola furnace, which can keep there is an efficient pollution control system in steady. The composition of waste gas contains: CO2, CO, SO2 and dust.

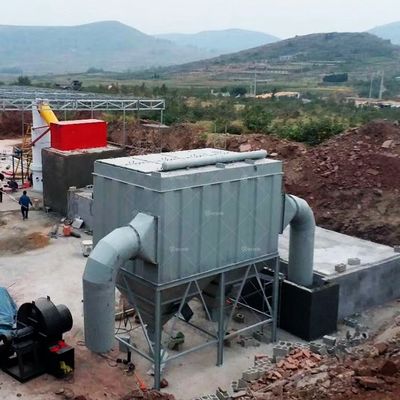

Environmental Protection System

Our research and development of products are carried out on the premise of environmental protection. As lead blocks are smelted to produce harmful gases such as carbon dioxide, carbon monoxide and sulfur dioxide, we are equipped with a flue gas collection system and a harmful gas purification system.

It is an environmentally friendly product that can become rich.

Product Advantages

1. Lead Acid Battery Melting Cupola Furnace can run as your needs, 24 hours running is no problem, Higher output performance than traditional lead melting furnace;

2. Feeding automatically, lower manpower cost, output continuously; The lead liquid output continuously which is different from the output by batch;

3. Better safety control system; The system will cut of the power automatically in case of some emergency;

4. Environmental protection system - the whole line is configured with the air pollution control system.

Technical Parameters

Model	Capacity (24 Hours)
RQ-20	20 Ton
RQ-40	40-50 Ton
RQ-60	60-70 Ton
RQ-80	80-90 Ton
RQ-100	100-120 Ton
Working Performance
Raw Material	Lead Plate Separated From Lead Acid Battery
Final Product	Lead Ingot

NOTE:

Working voltage: 380±10V(415V ,440V also can be customized);

(If you want more detailed parameters and quotations, please feel free to send an inquiry)

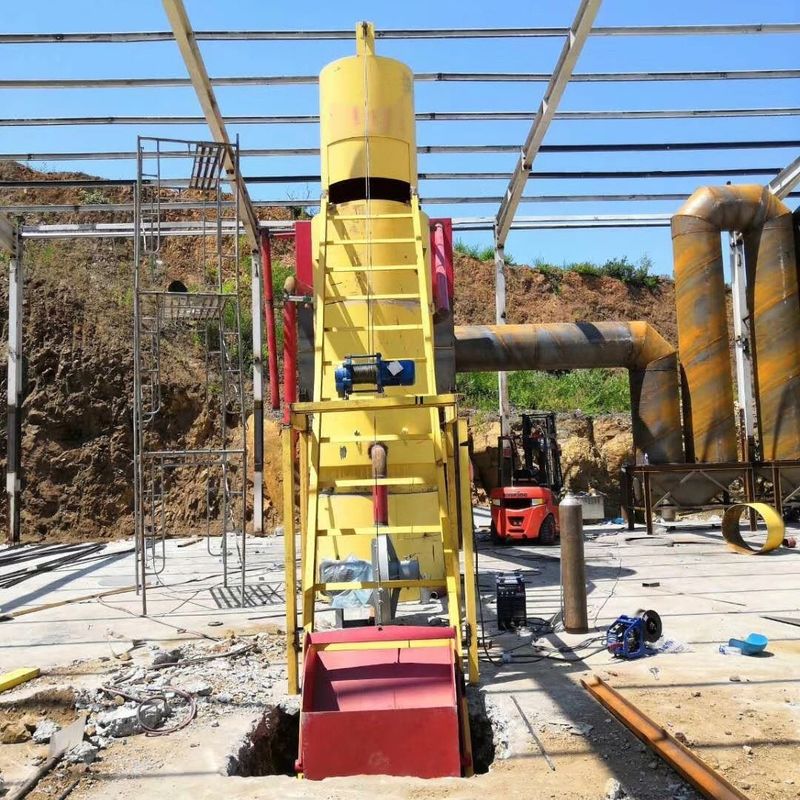

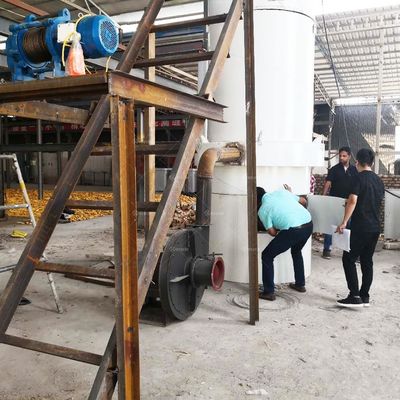

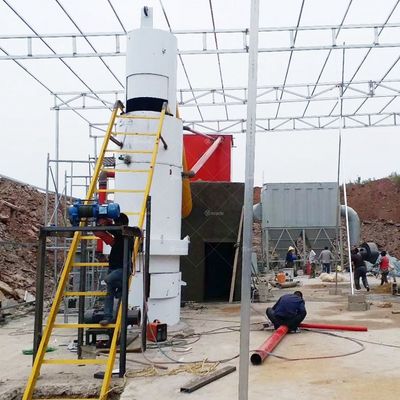

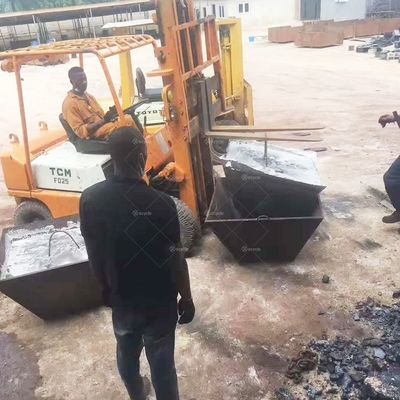

Customer Site

80 Tons Per Day Customer Working Site In African

70 Tons Daily Customer Worksite, Automatic Lead Output

50 T/D Working Site, Automatic Circulation, Air Pollution Treatment System

70 Tons Daily Customer Site, Welcome To Visit

60 Tons Per Day, You Can Visit Customer Sites In China

Company Show

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
