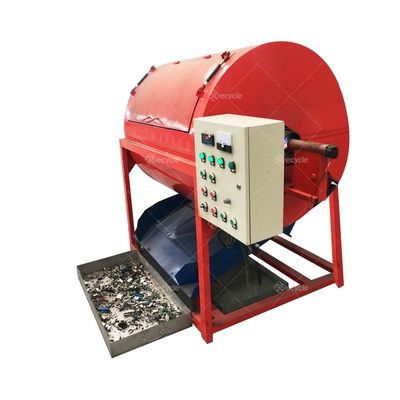

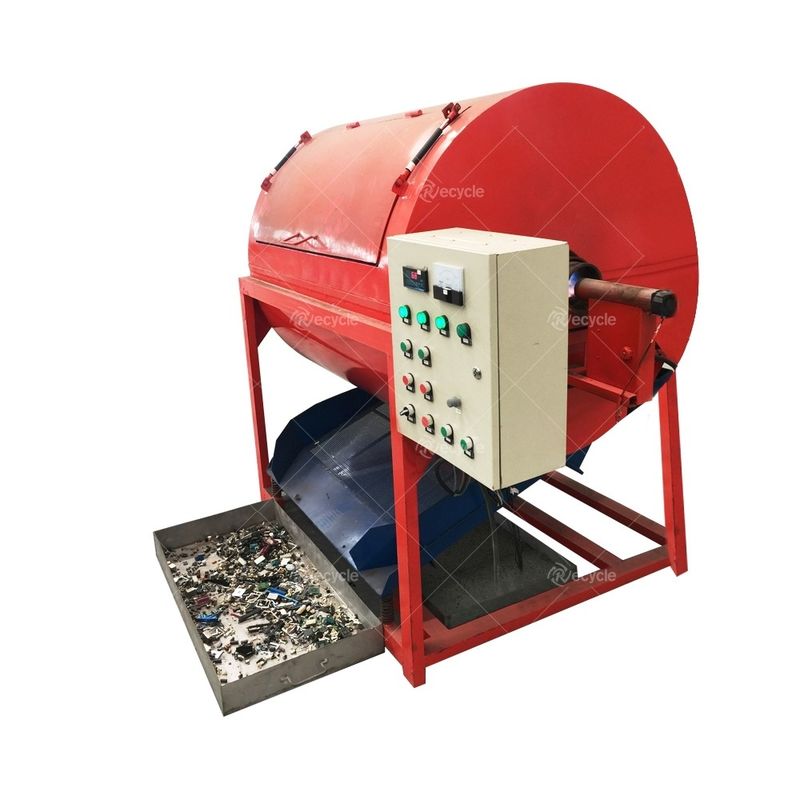

200-1000 Kg/h Capacity Circuit Board Dismantling Equipment for Electronic Components

Large Image : 200-1000 Kg/h Capacity Circuit Board Dismantling Equipment for Electronic Components

Product Details:

Place of Origin:	Henan, China
Brand Name:	Recycle
Certification:	CE Certificate
Model Number:	RSK-CJ200

Payment & Shipping Terms:

Price:	$5,000.00/sets
Packaging Details:	Packed in Wooden Case or Container for 2021 Hot Sale Circuit Board Dismantling Equipment Electronic Components Separating Machine
Supply Ability:	100 Set/Sets per Month Electronic Component Dismantling Machine

Contact Now

200-1000 Kg/h Capacity Circuit Board Dismantling Equipment for Electronic Components

Description

Condition:	New	Applicable Industries:	Other
Showroom Location:	Egypt, Canada, Turkey, United States, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, South Korea, Chile, UAE, Romania, South Africa, Uzbekistan, Malaysia	Type:	PCB Dismantling Machine
Warranty:	1 Year, 1 Year	Production Capacity:	200KG/H
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, PLC, Other	Weight (KG):	450 Kg
Name:	Electronic Components Separating Machine	Keywords:	PCB Board Dismantling Machine
Application:	Electronic Components Dismantling	Capacity:	200-1000 Kg/h
Final Product:	Bare Boards And Components	Raw Material:	E Waste Boards,Computer Boards Etc
Advantage:	Environmentally Friendly	Delivery Time:	As Customer's Demand

2021 Hot Sale Circuit Board Dismantling Equipment Electronic Components Separating Machine

PCB Components Dismantling Machine is used to remove the electronic components on different PCB boards, The drumer made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability. It is Pre Processing before E waste Pcb Recycling Line

Working Principle

Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works. So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components
screen and magnetic machine.

The Whole Process:

Dismantling Machine Body—Electronic Component Screen —Magnetic Separator

1. PCB Dismantling Machine Body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;

2. Electronic Component Screen: Classify the similar size electronic components in one side;

3. Magnetic Separator: Further classify these components which include iron or not.

Technical Parameters

Model	Power (Kw)	Weight (Kg)	Capacity (Kg/H)	Dimension (m)
RSK-200	0.75+1.1+3	450	200	1.670.971.4
RSK-300	0.75+2.2+3	700	300	1.851.21.52
RSK-500	0.75+3+3	1100	500	2.11.271.74

NOTE:

Working voltage:380±10V(415V ,440V also can be customized)

(The Price depends on your capacity and configuration of the machinery;)

Features

Mother board and components can be proceed respectively in the next step to improve economic benefits.

1. Full automatic working, save labor, 1-2 persons are enough;

2. Tin remove and dismantling components at one step;

3. Automatic temperature control system,controlled by PLC;

5. Large capacity: 500kg/h;

6. Operating safety and easily;

7. It can ensure the nature of electronic component and keeps its high recycle value;

8. Friendly to the air environment, all the smoke processing by the waste gas treatment system.

Related Equipment

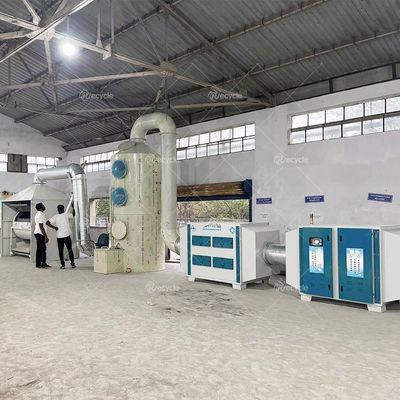

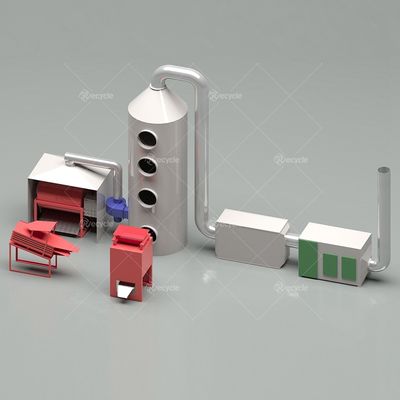

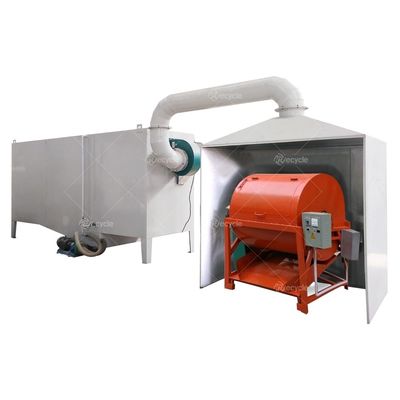

When recovering waste PCB circuit board with components ,the first process need to be done is to heat and remove electronic elements which would produce a lot exhaust gases. These gases are harmful,toxic and cancerogenic and will cause secondary pollution without proper treatment before discharge.Heavy metal dust and inorganic acid gases and organic gases were removed separately through our three levels filtrating equipment.

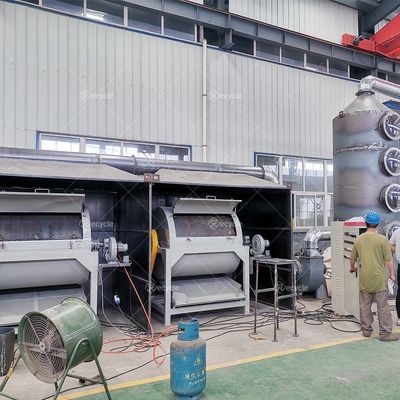

Company Show

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
