Henan Recycle Paper Cup TetraPack Recycling Machine Paper and Plastic Separator for Paper Mill

Large Image : Henan Recycle Paper Cup TetraPack Recycling Machine Paper and Plastic Separator for Paper Mill

Product Details:

Place of Origin:	Henan, China
Brand Name:	Recycle

Payment & Shipping Terms:

Price:	$29,500.00 - $105,000.00/sets
Packaging Details:	Packed in Wooden Case of HENAN RECYCLE Paper Cup TetraPack Recycling Machine Paper and Plastic Separator
Supply Ability:	50 Set/Sets per Month HENAN RECYCLE Paper Cup TetraPack Recycling Machine Paper and P

Contact Now

Henan Recycle Paper Cup TetraPack Recycling Machine Paper and Plastic Separator for Paper Mill

Description

Condition:	New	Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Construction Works , Other
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, Italy, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, UAE, Ukraine, Malaysia, Australia	Type:	Paper Recycling
Warranty:	1 Year	Production Capacity:	15000KG/H
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2022	Warranty Of Core Components:	1 Year
Core Components:	Motor, Engine, Other	Weight (KG):	3000 Kg
Name:	Paper Cup TetraPack Recycling Machine	Application:	Recycling Paper
Input Materials:	Coated Paper/Kraft Paper Bag/Paper Cups/ Milk Bag Etc	Final Product:	Paper Pulp And Plastic Aluminum
Capacity:	According To Your Raw Materials	Model:	Customized
Keywords:	Milk Bag Paper Plastic Aluminum Separator	Feature:	High Seperation Ratio
Advantage:	Easy Opperation	Application Field:	Paper Mill
Port:	Qingdao Port ,Guangzhou Port

Factory Manufacture Paper Mill Reject Paper And Plastic Separator Paper Plastic Separating Machine

The production line includes Four Main Single Machines(As your demands)

1. Paper Aluminum Separator

2. Pulp Filter

3. Pulp Dehydrator

4. Pulp Filter Press Equipment

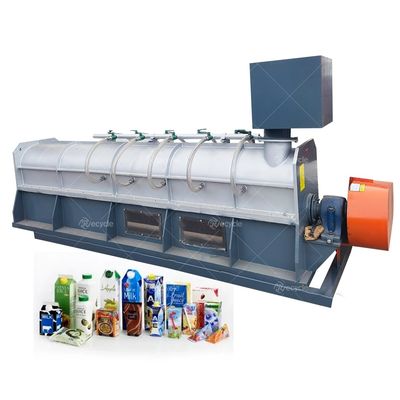

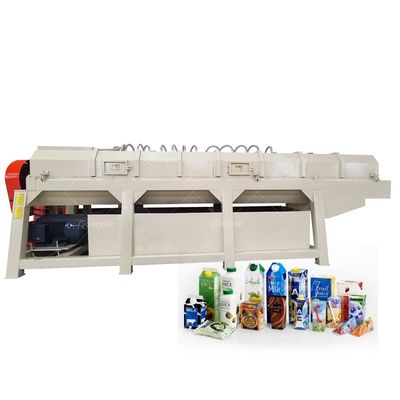

1. Paper Aluminum Separator

It is the main equipment of the production line.

The working principle is that the motor drives the spindle to rotate at high speed. The spindle blade drives the material to move from the feeding end to the discharging end.

After years of research and development experience and cooperative development by cooperative manufacturers, water mixing and spindle sieve plate friction separation are adopted according to the characteristics of paper-plastic composite and paper-plastic mixture. This paper-plastic separator has passed through many cooperative manufacturers and customers.

Function	Paper Mills Material	PE Coated Paper/Kraft Paper	Paper-plastic Composite Woven Bag
Main Motor Power（kw)	110KW	75KW-132KW	55KW
Rated Speed (r/min)	380-560	380-560	380-560
Sieve Hole Diameter (Customized)	8mm	8mm	8mm
Sieve Plate Thickness (Customized)	8mm	8mm	8mm
*Outlet (LW) mm**	800*800	800*800	800*800
Pulp Outlet Dia(mm)	φ220*2	φ220*2	φ220*2
Capacity	150-200t/24h	1.5-3.5t/h	11000-11500Strips/h
*Floor Space: Width Length (mm)**	1800*8000	1800*8000	1800*8000
Overall Height (mm)	3300	3300	3300
Outlet Height (mm)	1100	1100	1100
Pulp Outlet Height (mm)	800	800	800

2. PULP FILTER

In the pulping of waste paper, because of the different paper quality of waste paper, there is a large amount of slag. This machine can remove light and heavy sundries and decompose small pieces of paper in fibers, without blocking the sieve plate, and hard sundries will not hurt the sieve plate.

The factory does not have to stop running for cleaning frequently, and it can also be used as a second pulping machine. It is mainly used for sorting tail pulp after fiber separator and pressure screen; The treated and sorted slurry is directly returned to the fiber separator or the slurry pool in front of the pressure screen for reuse. After sorting The tailings do not contain fiber, which meets the emission requirements of environmental protection.

Model	380	450	500
Sieve Plate Length(mm)	L1250W6102pcs	L1500W7152pcs	L1500W7953pcs
Motor	45kw-4	75kw-6	90kw-6
Total Length	3750mm	4150mm	5850mm
Width	780mm	850mm	925mm
Base Length	3000mm	3500mm	5160mm
Pulp Inlet	219	219	273

3. PULP DEHYDRATOR

The basic working principle of the pulp dehydrator is: the particles rotate to a certain height with the drum,are thrown and fall by gravity, and are filtered through the screen to form a sieve. The roller screen is shaft driven, and the screen is steel wire woven net or high toughness nylon woven net. The ruler of the sieve holes can be configured according to the technological requirements.

Model	Power(kw)	Sieve Density	Sieve Length(mm)	Weight(kg)	Capacity(kg)
TS-200	0.75	100	2000	150	500
TS-300	1.5	100	3000	200	750
TS-400	2.2	100	4000	270	1000
TS-500	2.2	100	5000	350	1300

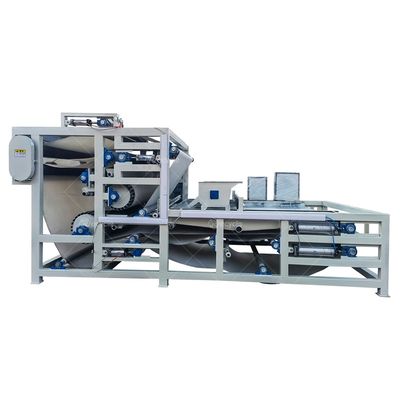

4. PULP FILTER PRESS EQUIPMENT

Pulp filter press is a mechanical equipment designed for the recycling of pulp separated by paper-plastic separator. The pulp filter press uses the motor to drive the spindle to run and drive the polyester blanket. The pulp is transported to the filter press by the pump and evenly flows onto the polyester blanket. After being driven by the polyester blanket, it is squeezed between two layers of polyester blankets, and then squeezed and compacted by multiple pressing rollers, thus making cardboard for secondary utilization.

The filtered clear water can be pumped by a water pump for recycling, thus reducing emissions and saving resources.

Model	1500-Model	2000-Model	2500-Model
Driven Motor Power(KW)	4	4	5.5
Polyester Blanket Specification	1500x11300	2000x11300	2500x11300
Polyester Blanket Specification		1500x12700	2000x12700	2500x12700
Pulp Processing Capacity (t/d)	35-55	42-62	50-70
Floor Area	2400x6000	2900x6000	3400x6000
Spindle Speed (r/min)	37-61.5	37-61.5	37-61.5
