Automatic Copper Aluminum Rod Upward Continuous Casting Machine

Large Image : Automatic Copper Aluminum Rod Upward Continuous Casting Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	RECYCLE

Payment & Shipping Terms:

Price:	$3,000.00 - $200,000.00/sets
Packaging Details:	1). Name: Automatic Copper Aluminum Rod Upward Continuous Casting Machine <br>2). Packaging Details: Standard Packaging Or As Customers' Requirements Packaging Automatic Copper Aluminum Rod Upward Continuous Casting Machine
Supply Ability:	20 Set/Sets per Year

Contact Now

Automatic Copper Aluminum Rod Upward Continuous Casting Machine

Description

Condition:	New	Machine Type:	Automatic
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Engine, Motor	Voltage:	220V/380V
Power:	220KW~700KW	Dimension(LWH):	As Designed
Warranty:	1 Year	Key Selling Points:	Long Service Life
Showroom Location:	Egypt, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, India, Mexico, Thailand, South Korea, Chile, UAE, Algeria, Sri Lanka, Morocco	Applicable Industries:	Manufacturing Plant, Energy & Mining
Weight (KG):	7000	Product Name:	Automatic Copper Aluminum Rod Upward Continuous Casting Machine
Color:	As Requirements Copper Aluminum Rod Upward Continuous Casting Machine	Raw Material:	Scrap Copper/Cathode Copper
Rod Casting Speed:	0~2.8m/min	Diameter:	8mm To 30mm Copper Aluminum Rod Upward Continuous Casting Machine
Supplier:	China Automatic Copper Aluminum Rod Upward Continuous Casting Machine	Application:	Oxygen-free Copper Rod Production
Output:	Electric Wire	Usage:	Copper Wire Making Equipment
Feature:	High Efficency Copper Aluminum Rod Upward Continuous Casting Machine	Port:	Qingdao/Shanghai/Tianjin Port

Product Application

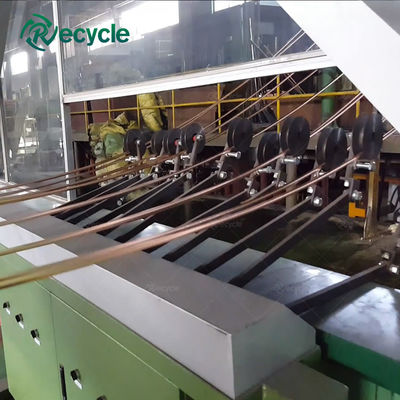

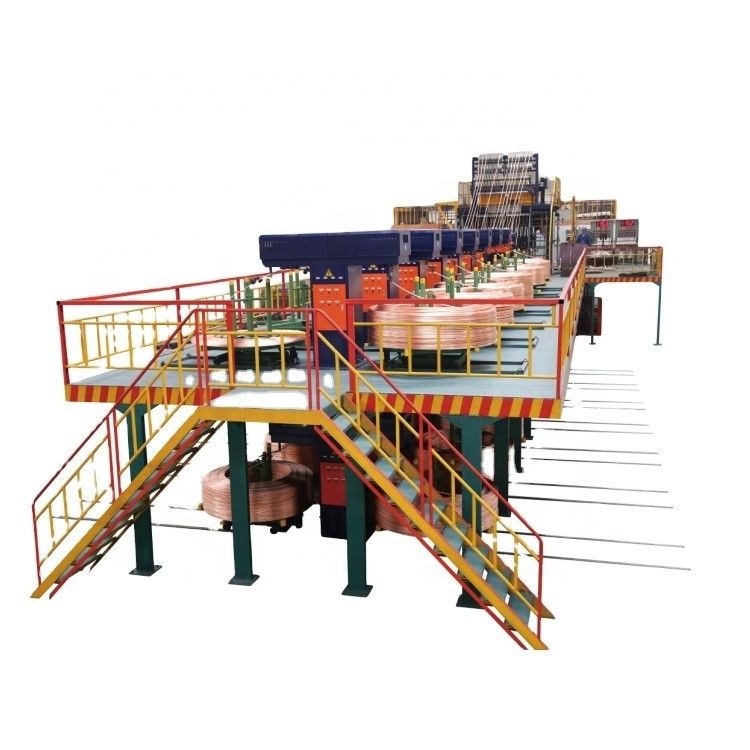

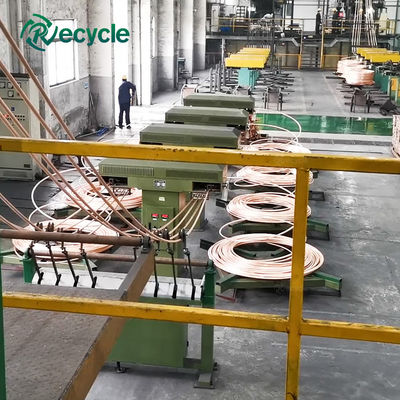

Copper Rod Upward Continuous Casting Machine ( up cast line )
Upward Copper Rod Continuous Casting Full Plant is used to produce the long and bright oxygen-free copper rod with the diameter from 8 to 25mm. Large-length bright oxygen-free copper tube blanks and large-length bright oxygen-free copper slabs.
As a conductive material with high conductivity and low oxygen content, the oxygen-free copper rod is widely used in wire,cable,electromagnetic wire and other industries.

Raw Material

The raw materials for Upward Copper Rod Continuous Casting Full Plant should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2, Generally, cathode copper is commonly used, and pure copper is more than 99% waste copper.

Final Products

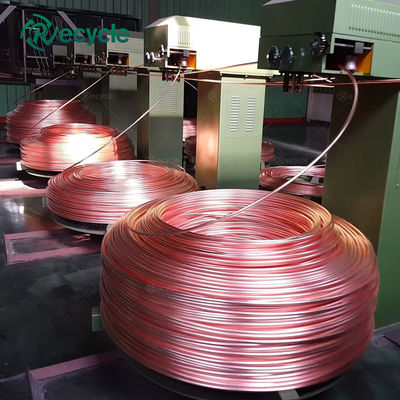

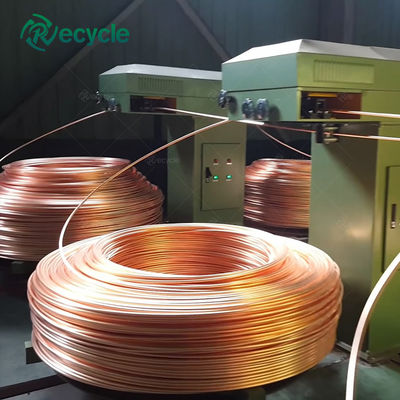

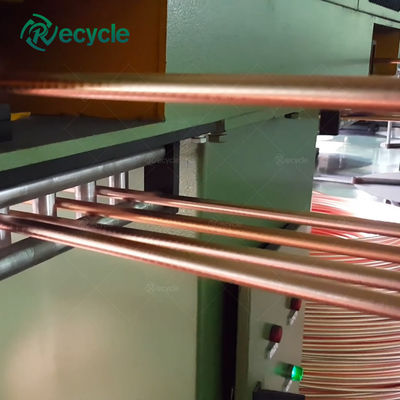

Long and bright oxygen-free copper rod with the diameter from 8 to 25mm. Large-length bright oxygen-free copper tube blanks and large-length bright oxygen-free copper slabs.

FINAL PRODUCT STANDARD

Raw Materials	The raw materials should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2
Battery Cover Remover	220020001300 mm
Copper Rod	Copper rod technical indicators should meet the GB/T3952-2008 standard
Density	~8.9Kg/dm3
Tensile Strength	>170N/mm2
Soft Electrical Conductivity	>100% IACS ( 2m2n Flexble Wire )
Soft Electrical Resistivity	>0.15328Ωg/m2
Elongation	>37%
Oxygen Content	≤20ppm

PROCESS DETAILS

1. Cathode copper is directly added to the melting furnace and melted into a liquid by power frequency induction;

2. After melting, the copper liquid will automatically and smoothly overflow into the intermediate holding furnace through the transition chamber;

3. The copper liquid has a stable reduction process by the covered surface of charcoal;

4. After the reduction, the copper liquid is rapidly crystallized into a cast rod through a crystallizer through the continuous casting machine in the holding furnace;

5. Every casting rod is equipped with a controller and a torsion bar machine.The casting rod is led from the continuous casting machine to the controller and the torsion bar through the regulating wheel device to form a circle. After the completion of the circle, the casting rod is cut and hoisted away for the next process.

Technical Parameters

Capacity	3000 - 12000T/Year
Furnace Number	2 Melting Furnace+1 Heat Preservation Furnace
Casting Rod Number	24 Pcs
Casting Rob Diameter	φ8mm ~ φ20mm
Upward Speed	6.0 ~ 2800mm/min
Upward Circular Pitch	3-6mm ( Adjustable )
Traction Frequency	0 ~ 800 times/time
Traction Way	Servo Motor Tranction
Winding Specification	φ1000xφ1550x800 ( mm )
Voltage	380V, 50Hz, 3Phase
Melting Copper Speed	1550 Kg/H
Maximum Operating Power	≤560 Kw
Power Consumption	≤330 Kwh/T

DEEP PROCESSING EQUIPMENT

CUSTOMER COOPERATION

Our company can offer you whole processing solution for the copper, such as copper separator, copper electrolysis, copper bar production line etc, and we will offer you the professional installing and training service, to help you to build a perfect copper recycling factory.

About Us

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
