Fully Automatic 2019 RECYCLE Enameled Wire Upward Casting Plant for Copper Rods Diameter 8mm to 30mm

Large Image : Fully Automatic 2019 RECYCLE Enameled Wire Upward Casting Plant for Copper Rods Diameter 8mm to 30mm

Product Details:

Place of Origin:	Henan, China
Brand Name:	RECYCLE
Certification:	CE

Payment & Shipping Terms:

Price:	$50,000.00/sets >=1 sets
Packaging Details:	Export Standard Package for 2019 RECYCLE Enameled wire Upward Casting Plant For Copper Rods
Supply Ability:	20 Set/Sets per Year

Contact Now

Fully Automatic 2019 RECYCLE Enameled Wire Upward Casting Plant for Copper Rods Diameter 8mm to 30mm

Description

Condition:	New	Machine Type:	Automatic
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Engine, Motor	Voltage:	220V/380V
Power:	220KW~700KW	Dimension(LWH):	As Designed
Warranty:	2 Years	Key Selling Points:	Long Service Life
Showroom Location:	Egypt, Turkey, United Kingdom, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Chile, UAE, Colombia, Sri Lanka, South Africa, Ukraine	Applicable Industries:	Manufacturing Plant, Other
Product Name:	2019 RECYCLE Enameled Wire Upward Casting Plant For Copper Rods	Diameter:	8mm To 30mm
Raw Material:	Scrap Copper/Cathode Copper	Rod Casting Speed:	0~2.8m/min
Application:	Oxygen-free Copper Rod Production	Weight:	Over 5 Tons
Type:	Fully Automatic	Keyword:	Copper Rod Upward Continuous Casting Machine
Capacity:	Customized	Advantage:	Complete Line Offered
After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	Egypt, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Thailand, Argentina, Chile, UAE, Algeria, Sri Lanka, South Africa	Port:	Qingdao/Shanghai/Tianjin Port

Product Application

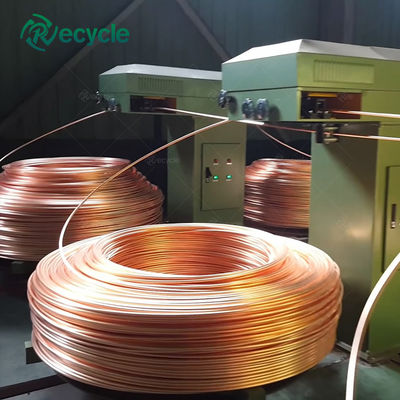

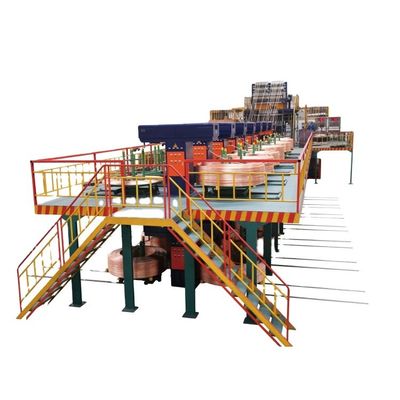

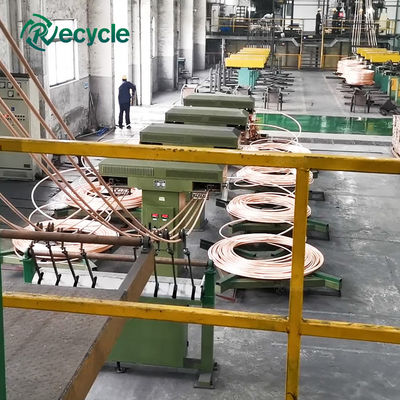

Copper Rod Upward Continuous Casting Machine ( up cast line )
Upward Copper Rod Continuous Casting Full Plant is used to produce the long and bright oxygen-free copper rod with the diameter from 8 to 25mm. Large-length bright oxygen-free copper tube blanks and large-length bright oxygen-free copper slabs.
As a conductive material with high conductivity and low oxygen content, the oxygen-free copper rod is widely used in wire,cable,electromagnetic wire and other industries.

Raw Material

The raw materials for Upward Copper Rod Continuous Casting Full Plant should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2, Generally, cathode copper is commonly used, and pure copper is more than 99% waste copper.

Final Products

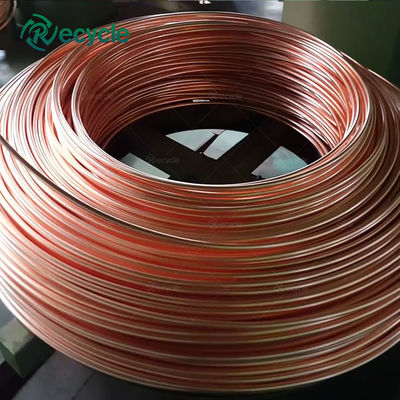

Long and bright oxygen-free copper rod with the diameter from 8 to 25mm. Large-length bright oxygen-free copper tube blanks and large-length bright oxygen-free copper slabs.

FINAL PRODUCT STANDARD

Raw Materials	The raw materials should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2
Battery Cover Remover	220020001300 mm
Copper Rod	Copper rod technical indicators should meet the GB/T3952-2008 standard
Density	~8.9Kg/dm3
Tensile Strength	>170N/mm2
Soft Electrical Conductivity	>100% IACS ( 2m2n Flexble Wire )
Soft Electrical Resistivity	>0.15328Ωg/m2
Elongation	>37%
Oxygen Content	≤20ppm

PROCESS DETAILS

1. Cathode copper is directly added to the melting furnace and melted into a liquid by power frequency induction;

2. After melting, the copper liquid will automatically and smoothly overflow into the intermediate holding furnace through the transition chamber;

3. The copper liquid has a stable reduction process by the covered surface of charcoal;

4. After the reduction, the copper liquid is rapidly crystallized into a cast rod through a crystallizer through the continuous casting machine in the holding furnace;

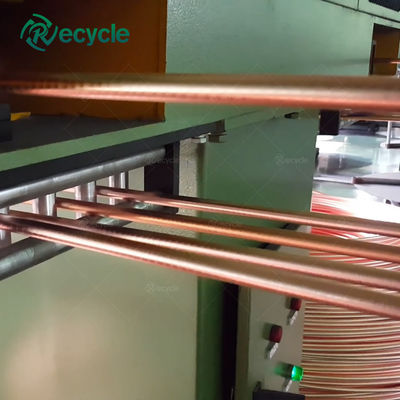

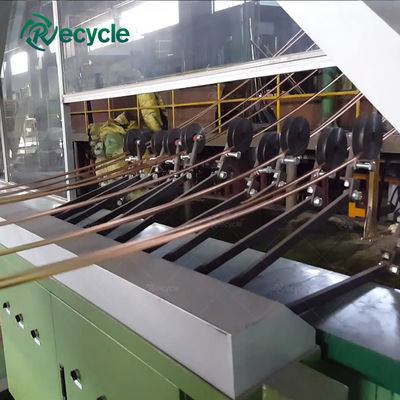

5. Every casting rod is equipped with a controller and a torsion bar machine.The casting rod is led from the continuous casting machine to the controller and the torsion bar through the regulating wheel device to form a circle. After the completion of the circle, the casting rod is cut and hoisted away for the next process.

Technical Parameters

Capacity	3000 - 12000T/Year
Furnace Number	2 Melting Furnace+1 Heat Preservation Furnace
Casting Rod Number	24 Pcs
Casting Rob Diameter	φ8mm ~ φ20mm
Upward Speed	6.0 ~ 2800mm/min
Upward Circular Pitch	3-6mm ( Adjustable )
Traction Frequency	0 ~ 800 times/time
Traction Way	Servo Motor Tranction
Winding Specification	φ1000xφ1550x800 ( mm )
Voltage	380V, 50Hz, 3Phase
Melting Copper Speed	1550 Kg/H
Maximum Operating Power	≤560 Kw
Power Consumption	≤330 Kwh/T

DEEP PROCESSING EQUIPMENT

CUSTOMER COOPERATION

Our company can offer you whole processing solution for the copper, such as copper separator, copper electrolysis, copper bar production line etc, and we will offer you the professional installing and training service, to help you to build a perfect copper recycling factory.
