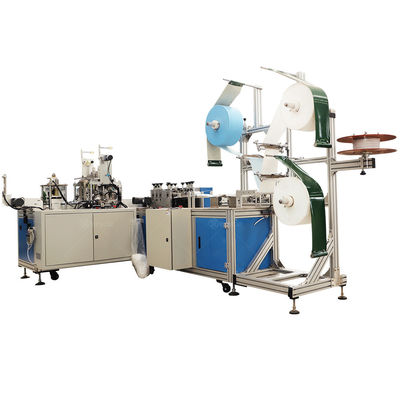

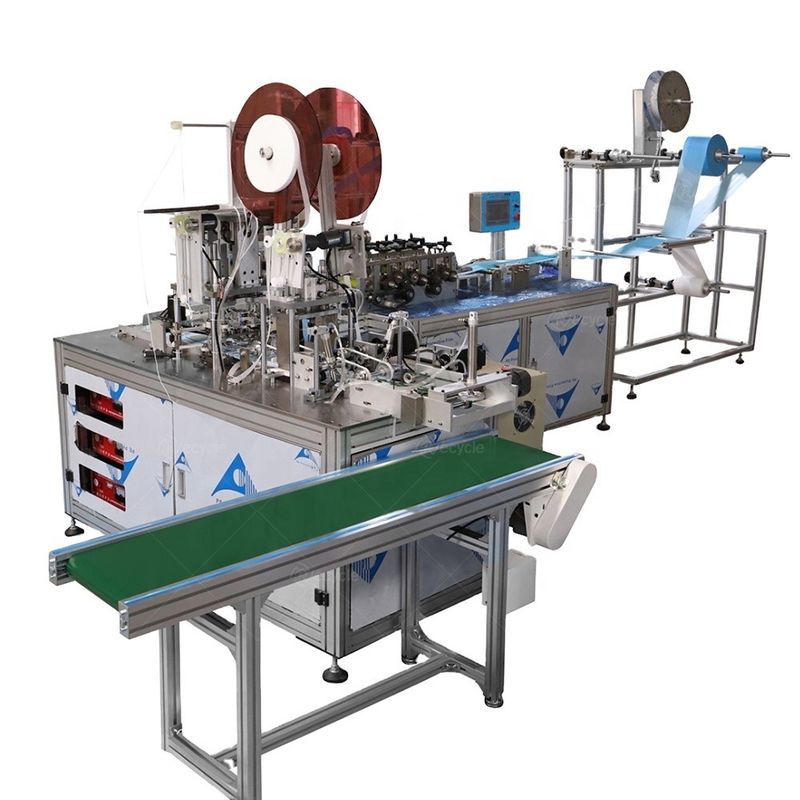

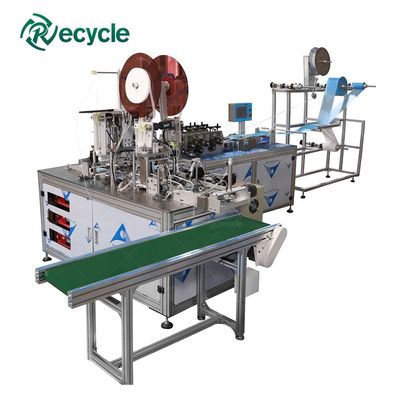

Protect Health Suny Group 3 Ply Inner Earloop Face Mask Machine

Large Image : Protect Health Suny Group 3 Ply Inner Earloop Face Mask Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	Recycle

Payment & Shipping Terms:

Price:	$14,000.00/sets >=1 sets
Packaging Details:	Packed in Wooden Case or Container for Suny Group 3 Ply Inner Earloop Face Mask Machine
Delivery Time:	7-10 days
Supply Ability:	100 Set/Sets per Month Suny Group 3 Ply Inner Earloop Face Mask Machine

Contact Now

Protect Health Suny Group 3 Ply Inner Earloop Face Mask Machine

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Banglades
Condition:	New	Automatic Grade:	Full-automatic
Voltage:	220V	Power:	8 W
Dimension(LWH):	2700mm2350mm1700mm	Weight:	1000 KG
Warranty:	1 Year	Year:	2020
Production Capacity:	120-140pcs/min	Key Selling Points:	Automatic
Mask Types:	Flat	Mask Material:	Non-woven Fabrics
Product Name:	Suny Group 3 Ply Inner Earloop Face Mask Machine	Capacity:	120-140pcs/min
Type:	Fully Automatic	Keywords:	Surgical Face Mask Making Machine
Usage:	To Protect Health	Other Name:	Automatic Mask Equipment
Application:	All Industry	Final Products:	Medical Face Masks
Product Type:	Full Automatic	Port:	Qingdao Port ,Guangzhou Port Or Other

Technical Parameters

The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing,
cutting the finished products automatically, complete line include 1 set mask making machine and 1 set
automatic ear loop welding machine. With the new generation of mask machine equipment, the number
of cylinders used is reduced, and motors are used instead, so that the failure rate is greatly reduced and
the production efficiency rises linearly.

Model	ZYPK-60
Capacity	120-140pcs/min
Power	8.15KW
Voltage	220V±5%,50/60HZ
Net Weight	1050KG
Mask Layer	2-4Ply
Dimension	4269mm2788mm2022mm
The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail.

Product Structure

This machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by
rollers after unwinding, and the fabric is automatially folded and hemmed; Bridge of nose strip whole roll
traction uroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then
ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band
welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the
mask is made, it is transported to the flat belt line for collection.

INTELLIGENT TOUCH PLC

PLC has three languages to choose
from, Chinese, English and another
language you want to choose.

WELDING & CUTTING MACHINE

From fabric, folding, welding to cutting,
the whole blank production process is
fully automatic, and the ultrasonic
welding roller can customize logo.

EAR LOOP

WELDING MACHINE

The welding structure of the new ear

strap adopts double guide rails for
horizontal welding and multiple servo
motors for driving, so the welding speed
is fast and stable, and the qualifed rate
of the mask is over 98%.

STACK SYSTEM

Automatic counting stack equipment,
servo motor, customer can customize
the number of stacks.
