Fully Automatic Earloop Face Mask Making Machine 1 plus 1 Face Mask Production Line

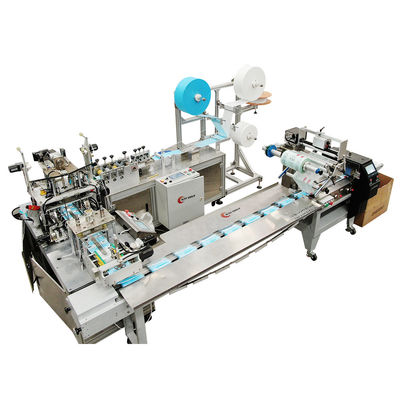

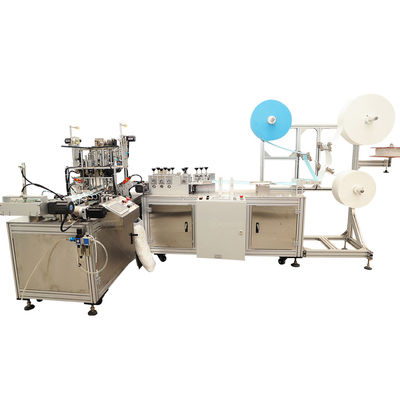

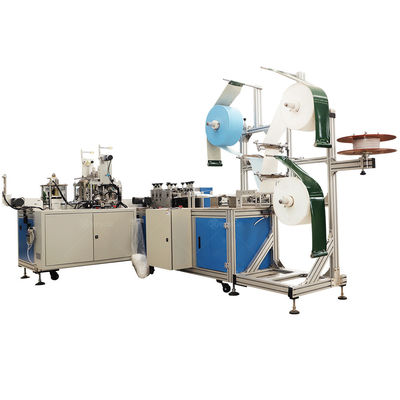

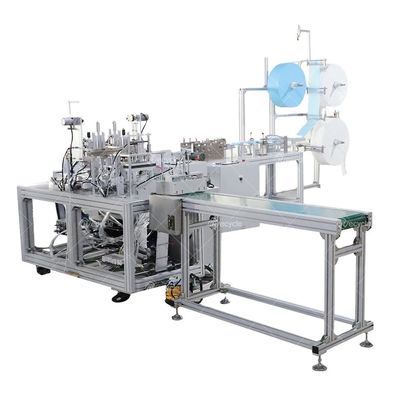

Large Image : Fully Automatic Earloop Face Mask Making Machine 1 plus 1 Face Mask Production Line

Product Details:

Place of Origin:	Henan, China
Brand Name:	Recycle

Payment & Shipping Terms:

Price:	$13,500.00/sets >=1 sets
Packaging Details:	Packed in Wooden Case or Container for Fully Automatic Ear loop Face Mask Making Machine 1 plus 1 Face Mask Production Line
Delivery Time:	7-10 days
Supply Ability:	100 Set/Sets per Month Fully Automatic Ear loop Face Mask Making Machine 1 plus 1

Contact Now

Fully Automatic Earloop Face Mask Making Machine 1 plus 1 Face Mask Production Line

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Banglades
Condition:	New	Automatic Grade:	Full-automatic
Voltage:	220V	Power:	8150 W
Dimension(LWH):	4269mm2788mm2022mm	Weight:	1000 KG
Warranty:	1 Year	Year:	2020
Production Capacity:	120-140pcs/min	Key Selling Points:	Automatic
Mask Types:	Flat	Mask Material:	Non-woven Fabrics
Product Name:	Fully Automatic Earloop Face Mask Making Machine	Type:	Fully Automatic
Capacity:	120-140pcs/min	Application:	All Industry
Keywords:	Fully Automatic Earloop Face Mask Making Machine	Usage:	All People
Product Type:	Mask Making Equipment	Other Name:	Face Mask Production Line
Final Products:	Medical Face Masks	Port:	Qingdao Port ,Guangzhou Port Or Other

Technical Parameters

The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing,
cutting the finished products automatically, complete line include 1 set mask making machine and 1 set
automatic ear loop welding machine. With the new generation of mask machine equipment, the number
of cylinders used is reduced, and motors are used instead, so that the failure rate is greatly reduced and
the production efficiency rises linearly.

Model	ZYPK-60
Capacity	120-140pcs/min
Power	8.15KW
Voltage	220V±5%,50/60HZ
Net Weight	1050KG
Mask Layer	2-4Plys
Dimension	4269mm2788mm2022mm
The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail.

Product Structure

This machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by
rollers after unwinding, and the fabric is automatially folded and hemmed; Bridge of nose strip whole roll
traction uroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then
ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band
welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the
mask is made, it is transported to the flat belt line for collection.

INTELLIGENT TOUCH PLC

PLC has three languages to choose
from, Chinese, English and another
language you want to choose.

WELDING & CUTTING MACHINE

From fabric, folding, welding to cutting,
the whole blank production process is
fully automatic, and the ultrasonic
welding roller can customize logo.

EAR LOOP

WELDING MACHINE

The welding structure of the new ear

strap adopts double guide rails for
horizontal welding and multiple servo
motors for driving, so the welding speed
is fast and stable, and the qualifed rate
of the mask is over 98%.

STACK SYSTEM

Automatic counting stack equipment,
servo motor, customer can customize
the number of stacks.

RECOMMENDED PRODUCT

WHY CHOOSE US

1. CE certified product and test machine with materials before delivery

CE certified products, Before leaving the factory, all machines must be debugged with materials to reach the normal trial production status, and the goods can be delivered only after the customer's remote video acceptance (domestic friends orthird-party organizations' on-site acceptance)

2. Provide equipment drawings

We will provide electrical drawings, installation drawings for equipment placement, videos and documents for solving common machine failures, so as to facilitate customers' later installation and debugging.

3. Good after-sales service

In addition to providing equipment installation videos for customers, we will set up a service team for customers about after-sales needs, including the company's manager, sales manager, engineers, customers and other relevant personnel, so that we can answer customers' any questions at any time. These online guidance services are completely free.

DELIVERY

Our products are packed in vacuum inside and wooden cases outside. Customers marvel at the quality of our equipment when they receive the goods. The equipment is of great weight and the packaging is very professional.

Certificates

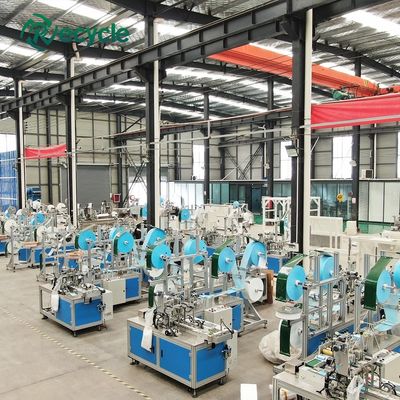

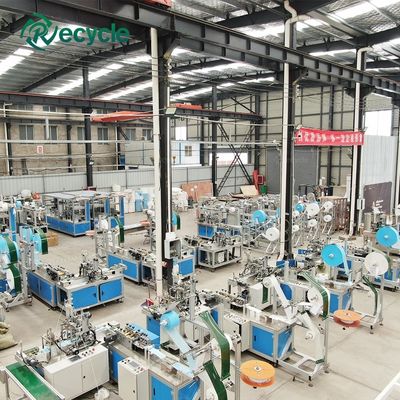

Company Show

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
