Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation

I'm Online Chat Now

Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation

Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation

Large Image :  Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation

Product Details:
Place of Origin: Henan, China
Brand Name: Recycle
Certification: CE
Payment & Shipping Terms:
Price: $15,000.00/sets >=1 sets

Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation

Description
Condition: New Machine Type: Scrap Copper Wire Recycling Machine
Weight (KG): 3700 Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2024
Warranty Of Core Components: 1 Year Core Components: PLC, Engine
Warranty: 1 Year Key Selling Points: High Productivity
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Showroom Location: Argentina, South Korea, Chile, UAE, Colombia, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, B
Name: Copper Cable Recycling Machine Capacity: 300kg/h
Type: Fully Automatic Key Word: Used Cable Shredding Unit
Wire Diameter: 0.3mm-20mm Application: All Kinds Copper Wire Recycling
Final Product: Copper Granules, Plastic Advantage: High Productivity For Copper Recovery
Processing Material: Computer Wires,Communication Wires,Industrial Cable Wires Etc


High Yield Copper Automatic Copper Cable Recycling Machine Wire Granulator Machine for Separate Copper and Plastic
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 0

Product Application


The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper granules and PVC. This machine can recycle the copper wire which diameter is 0. 3mm-35mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 1

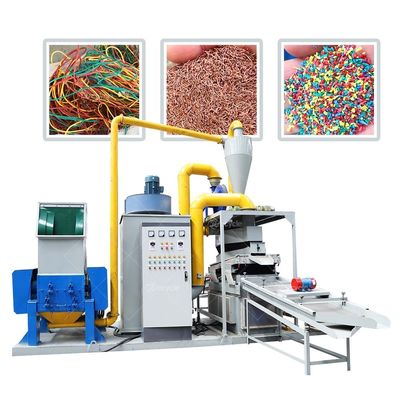

FINAL PRODUCTS


Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granules. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules
normally are PVC or rubber material, it can also be sold directly.
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 2
Product Structure
The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0.3mm-35mm. Automobile electrical wire or the electric wire of car,motorcycle electric wire, computer case wire and communication cable, etc.
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 3
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 4






Working Process of Copper
Wire Recycling Machine


1. Put wasted cable into the crusher machine, they will be cut into granules first. during this process, copper and plastic are separated but still mixed together.

2. Then the granules are sent to air separator for separation, according to the gravity difference and through air blow, the copper and plastics are separated success sully and comes out from different sides.

3. At last we collect the separated pure copper and plastic.
Product Details
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 5
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 6
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 7
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 8
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 9
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 10
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 11
Technical Parameters
Model
Capacity
Weight
Size (m)
Power
RSK-TMJ100
100-200kg/h
1850kg
2.2x2x2.3
28kw
RSK-TMJ300
200 300kg/h
2500kg
3.2x2.1x2.3
39kw
RSK-TMJ500
400-500kg/h
3850kg
6.2x5x3.3
68kw
RSK-TMJ800
700-800kg/h
5500kg
10.4x2.1x3.3
75kw
RSK-TMJ1000
800-1000kg/h
8200kg
12x4.1x4.5
95kw

Process Description
1. For the small capacity:
The cable wires raw materials can be put into the all-in-one machine directly, after crushing, it will use the Air separation system to make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh.
2. For larger capacity:
The cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system includes the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 12
Product Features
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 13
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 14
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 15
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 16
Packing and Delivery
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 17
Quality Assurance
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 18
Wire Granulator Machine for High Yield Copper Cable Recycling and Plastic Separation 19
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
