Product Details:
Place of Origin: Henan, China
Brand Name: Recycle
Certification: CE
Payment & Shipping Terms:
Price: $16,000.00/sets

Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator

Description
Condition: New Machine Type: Scrap Copper Wire Recycling Machine
Weight (KG): 3700 Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2024
Warranty Of Core Components: 1 Year Core Components: PLC, Engine
Warranty: 1 Year Key Selling Points: High Productivity
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Showroom Location: Argentina, South Korea, Chile, UAE, Colombia, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, B
Name: Industrial Copper Wire Granulation System Capacity: 300kg/h
Processing Material: Computer Wires,Communication Wires,Industrial Cable Wires Etc Wire Diameter: 0.3mm-20mm
Application: All Kinds Copper Wire Recycling Key Word: Copper Wire Granulator With Adjustable Size And Speed Controls
Type: Fully Automatic Final Product: Copper Granules, Plastic
Advantage: High Productivity For Copper Recovery


Industrial Copper Wire Granulation System Precision Copper Wire Granulator with Adjustable Size and Speed Controls

Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 0

Product Application

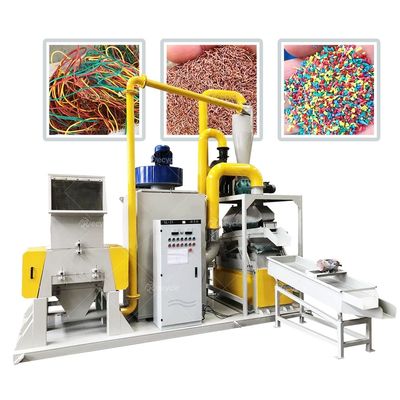

The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper granules and PVC. This machine can recycle the copper wire which diameter is 0. 3mm-35mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 1


FINAL PRODUCTS

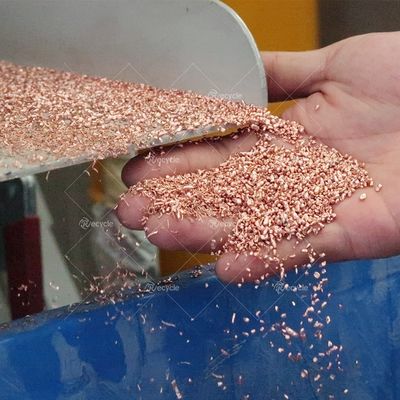

Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granules. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules
normally are PVC or rubber material, it can also be sold directly.
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 2
Product Structure

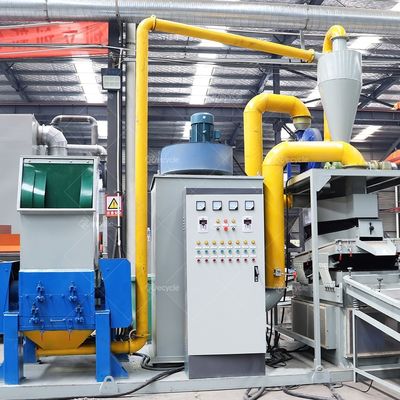

The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0.3mm-35mm. Automobile electrical wire or the electric wire of car,motorcycle electric wire, computer case wire and communication cable, etc.
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 3
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 4






Working Process of Copper
Wire Recycling Machine


1. Put wasted cable into the crusher machine, they will be cut into granules first. during this process, copper and plastic are separated but still mixed together.

2. Then the granules are sent to air separator for separation, according to the gravity difference and through air blow, the copper and plastics are separated success sully and comes out from different sides.

3. At last we collect the separated pure copper and plastic.
Product Details
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 5
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 6
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 7
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 8
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 9
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 10
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 11
Technical Parameters
Model
Capacity
Weight
Size (m)
Power
RSK-TMJ100
100-200kg/h
1850kg
2.2x2x2.3
28kw
RSK-TMJ300
200 300kg/h
2500kg
3.2x2.1x2.3
39kw
RSK-TMJ500
400-500kg/h
3850kg
6.2x5x3.3
68kw
RSK-TMJ800
700-800kg/h
5500kg
10.4x2.1x3.3
75kw
RSK-TMJ1000
800-1000kg/h
8200kg
12x4.1x4.5
95kw

Process Description
1. For the small capacity:
The cable wires raw materials can be put into the all-in-one machine directly, after crushing, it will use the Air separation system to make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh.
2. For larger capacity:

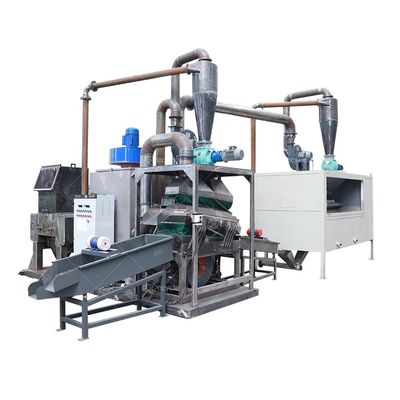

The cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system includes the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 12
Product Features
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 13
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 14
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 15
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 16
Packing and Delivery
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 17
Quality Assurance
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 18
Adjustable Size and Speed Controls High Productivity Copper Recovery Wire Granulator 19
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
