Turnkey Copper Electrolysis Production Line For Cathode Copper Producing

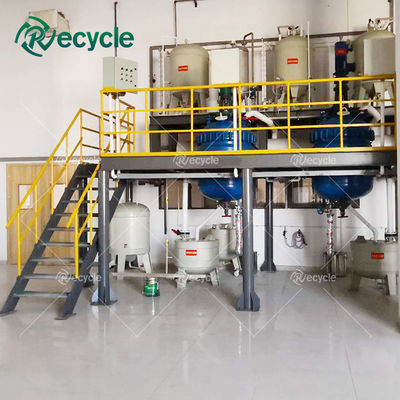

Large Image : Turnkey Copper Electrolysis Production Line For Cathode Copper Producing

Product Details:

Place of Origin:	Henan, China
Brand Name:	RECYCLE

Payment & Shipping Terms:

Price:	$30,000.00 - $300,000.00/sets
Packaging Details:	Standard Packing, Wooden case or As Customer Requirement for Turnkey Copper Electrolysis Production Line For Cathode Copper Producing
Supply Ability:	5 Set/Sets per Month Scrap Copper Refining System Copper Cathode Production Line

Contact Now

Turnkey Copper Electrolysis Production Line For Cathode Copper Producing

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Motor
Warranty:	2 Years	Power (kW):	280
Weight (KG):	10000	Key Selling Points:	99.99% Copper Cathode
Applicable Industries:	Manufacturing Plant, Copper Electrolysis Machine	Showroom Location:	Egypt, Viet Nam, India, South Africa, Ukraine, Nigeria
Product Name:	Copper Electrolysis Production Line For Cathode Copper Producing	Electrolytic Cycle:	15 Days
Raw Material:	Contains 98.5% Copper	Final Product:	99.99% Copper Cathode
Keyword:	Copper Cathode Making Machine	Capacity:	280-5000KW
Copper Purity:	99.99%	Usage:	Scrap Copper Refine Machine Copper Electrolysis Plant
After-sales Service:	Engineer Available	Application:	Cathode Copper Making Plant
Port:	Qingdao Port Or Other China Port

Turnkey Copper Electrolysis Production Line For Cathode Copper Producing

Product Description

Copper is a good conductor of electricity, and is used extensively to make electrical wiring and components. The purification of copper is a form of recycling. Copper is purified further using electrolysis and we call it Copper Electrorefining (electrolytic refining).

In industry this is carried out on a massive scale. The electrolytic copper production is processed in the huge copper electrolytic tank fulfilled with copper electrolytic solution. Even the best chemical method cannot remove all the impurities from the copper, but with electrolytic refining it is possible to produce 99.99% pure copper (whatever method is used to manufacture copper from its ore, its final purification is by electrolysis).

Customer work site of copper electrolysis project: Figure 1 shows the cathode plate and figure 2 shows the cathode copper after electrolysis. It is extracted from copper mine in smelting furnace, contains 98.5% copper. It is the raw material of electrolytic copper production. While the final electrolytic copper product contains 99.99% copper in it.

Working Flow

Copper electrolysis ,First, makes the crude copper which contains 98%-99.9% copper pouring into anode plate ,and use the pure copper sheet as cathode,then put them into the electrolytic cell

(which has the copper sulfate and sulfate solution);

Copper Electrolysis Refining Plant

Under the effect of direct current,the anode copper and poorer negative metal will be dissolved into the electrolyte,but the Gold,silver, palladium and other precious metals can't be dissolved, and they will be made into anode mud;

The copper which in the solution will be separated out preferentially, poorer metal that can't be separated out will stay in the solution ,they will be removed when purifying the electrolyte, that cathode will separate out more purer copper(99.99%), it will be called cathode copper or electrolysis copper.

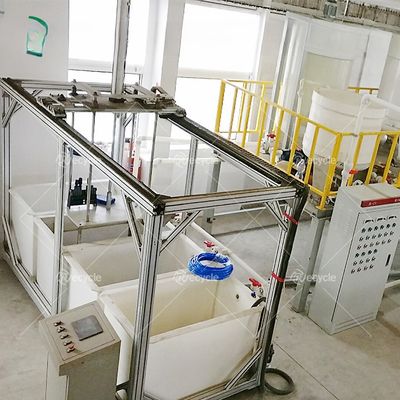

-----Copper Electrolysis Refining Tanks

Anode plates are hung by their "handles" in electrolytic copper refining tank. Pure copper cathode sheets suspended on solid copper bars are inserted into the same tank, one sheet between each anode. When an electric current is passed from the anodes through the electrolyte to the cathodes, copper from the anodes moves into the solution and is plated onto the starter sheet. Impurities from the anodes settle to the bottom of the tank.

-----Copper Anodes(Plates) Casting Machine

The copper anode will be casting into anode plates in molds semi-automatically. After pretreatment removing of tin, lead, iron,aluminum starts charging of the copper material into the furnace which is followed by smelting process. When the impurities are removed follows the slag removal and phase of reduction with natural gas. Reduction is aimed to remove the free oxygen. After the reduction the process is ended by casting, where the final product is casted into the form of copper anodes.

-----Pure Copper Cathode Sheets

The refining anodes taken out from the refining furnace is changed into electrolytic copper with purity of 99.99% through an electrolysis process: During electrolysis, copper (II) ions leave the impure copper anode and since they are positive, migrating to the negative cathode. From time to time, the pure copper is scraped off the cathode. Impurities from the copper anode, such as gold, silver, platinum and tin, collect at the bottom of the electrolyte solution, deposited as anode slime.

-----More Details On The Impurities Here

Ag, Au, tin and Pt are more noble than copper, insoluble in this electrolyte and so do not deposit on the cathode. They will be found as metals in the anode slime;

Soluble impurities of iron and nickel dissolve in the electrolyte, which has to be continually purified to prevent excessive deposition onto the cathodes, which would reduce the purity of the copper;

Sn, Bi and Sb dissolve anodically but will precipitate in the electrolyte as oxide or hydroxide compounds which will be found in the anode slime.

Technical Parameters

Model	RSKDJ-500	RSKDJ-1000	RSKDJ-2000	RSKDJ-5000
Mixed Metal Powder	500 Kg/D	1000 Kg/D	2000 Kg/D	5000 Kg/D
Energy Consumption	280	570	1130	2850
Electrolytic Cycle	15 Days/48H	15 Days/48H	15 Days/48H	15 Days/48H
Copper Capacity	370	750	1500	3750
Copper Purity	99.99%	99.99%	99.99%	99.99%

NOTE:

Working voltage:380±10V(415V ,440V also can be customized);

(If you want more detailed parameters and quotations, please contact us)

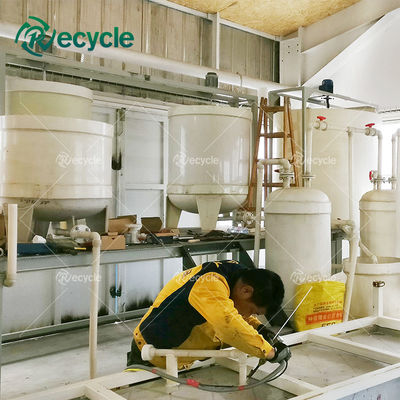

Customers Visiting

About Us

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
